Model

CR1220

Diameter(mm)

12.5

Height(mm)

2.0

Nominal Capacity(mAh)

40

Nominal Gurrent(mA)

0.05

High Drain Continous(mA)

1.0

High Drain Pulse(mA)

5.0

Model

CR1225

Diameter(mm)

12.5

Height(mm)

2.5

Nominal Capacity(mAh)

48

High Drain Continous(mA)

1.0

Nominal Gurrent(mA)

0.1

High Drain Pulse(mA)

5.0

Model

CR1616

Diameter(mm)

16.0

Height(mm)

1.6

Nominal Capacity(mAh)

50

High Drain Continous(mA)

1.0

Nominal Gurrent(mA)

0.1

High Drain Pulse(mA)

8.0

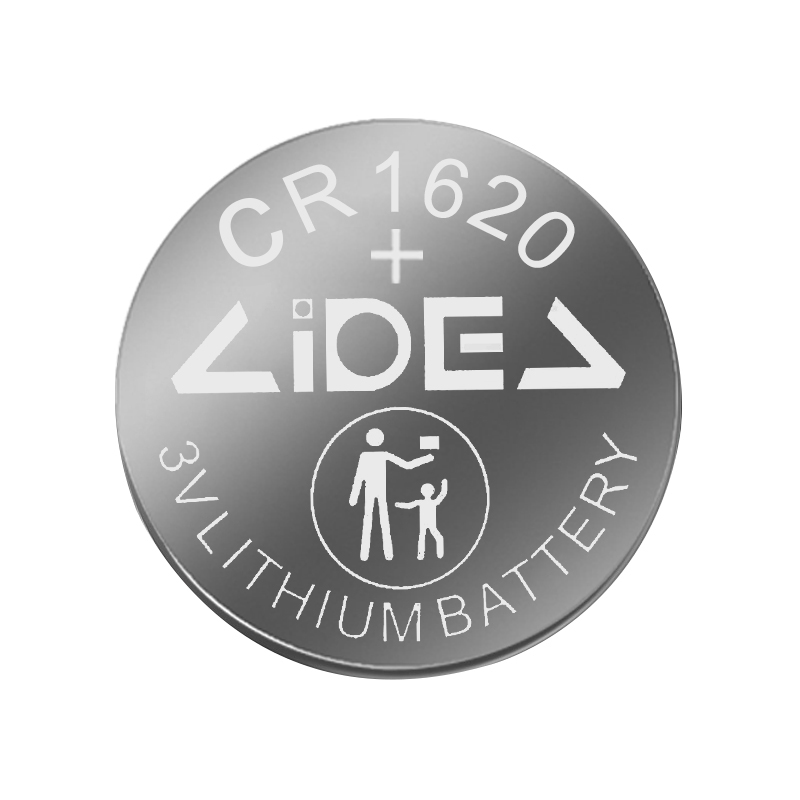

Model

CR1620

Diameter(mm)

16.0

Height(mm)

2.0

Nominal Capacity(mAh)

68

High Drain Continous(mA)

2.0

Nominal Gurrent(mA)

0.1

High Drain Pulse(mA)

8.0

Model

CR1632

Diameter(mm)

16.0

Height(mm)

3.2

Nominal Capacity(mAh)

125

High Drain Continous(mA)

2.0

Nominal Gurrent(mA)

0.2

High Drain Pulse(mA)

10.0

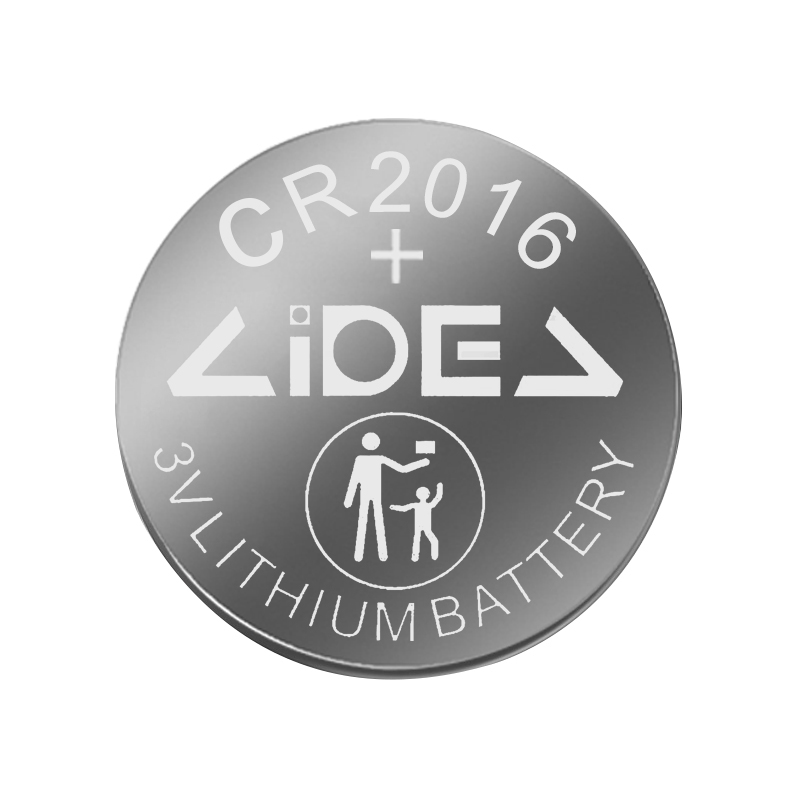

Model

CR2016

Diameter(mm)

20.0

Height(mm)

1.6

Nominal Capacity(mAh)

75

High Drain Continous(mA)

5.0

Nominal Gurrent(mA)

0.4

High Drain Pulse(mA)

15.0

Model

CR2025

Diameter(mm)

20.0

Height(mm)

2.5

Nominal Capacity(mAh)

150

High Drain Continous(mA)

3.0

Nominal Gurrent(mA)

0.2

High Drain Pulse(mA)

15.0

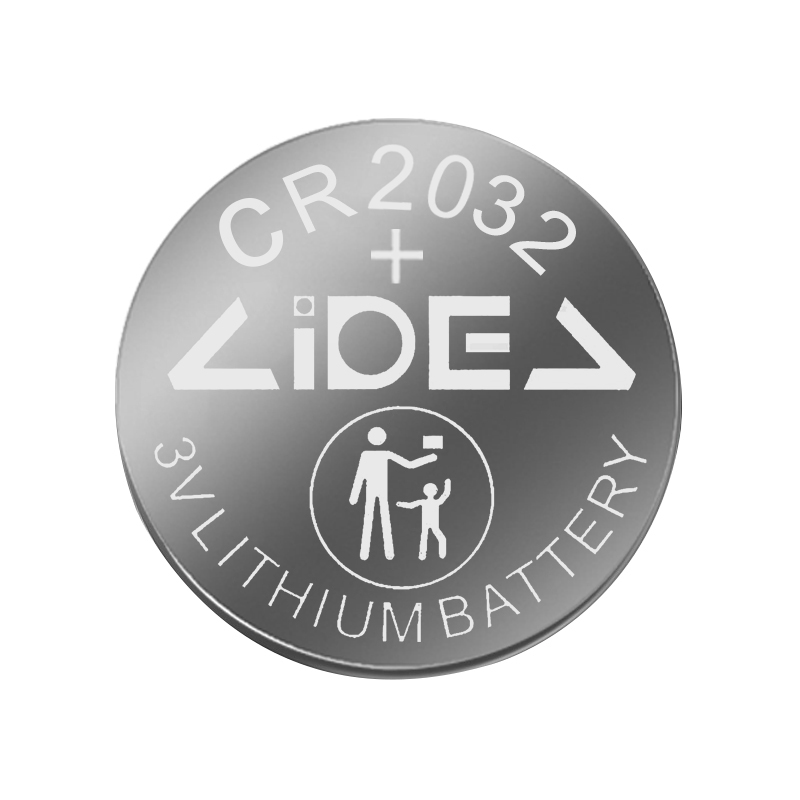

Model

CR2032

Diameter(mm)

20.0

Height(mm)

3.2

Nominal Capacity(mAh)

230

High Drain Continous(mA)

8.0

Nominal Gurrent(mA)

0.5

High Drain Pulse(mA)

15.0

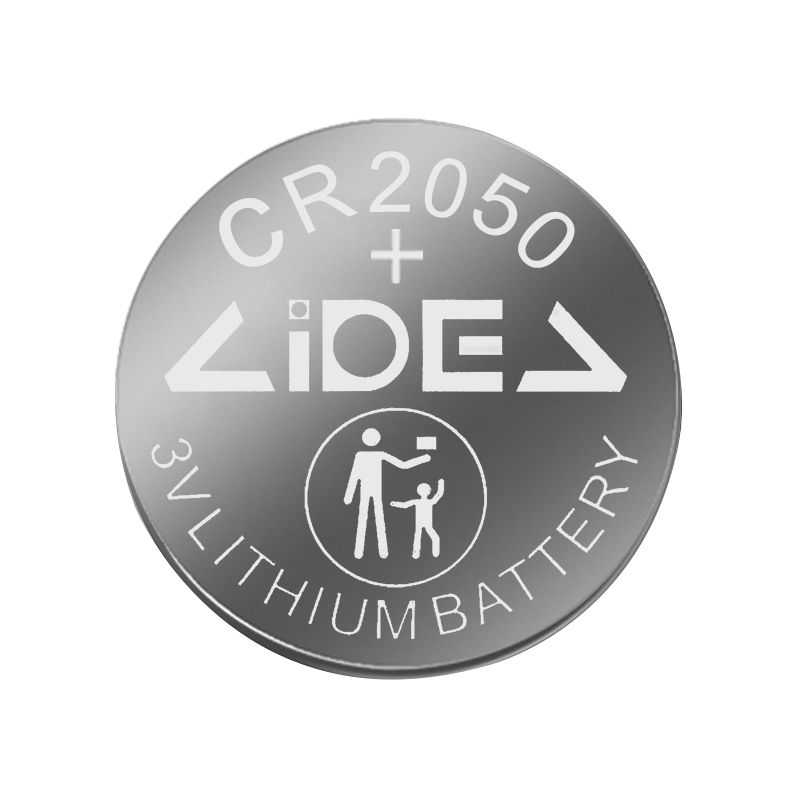

Model

CR2050

Diameter(mm)

20.0

Height(mm)

5.0

Nominal Capacity(mAh)

320

High Drain Continous(mA)

5.0

Nominal Gurrent(mA)

0.2

High Drain Pulse(mA)

15.0

Model

CR2430

Diameter(mm)

24.5

Height(mm)

3.0

Nominal Capacity(mAh)

300

High Drain Continous(mA)

10.0

Nominal Gurrent(mA)

0.2

High Drain Pulse(mA)

18.0

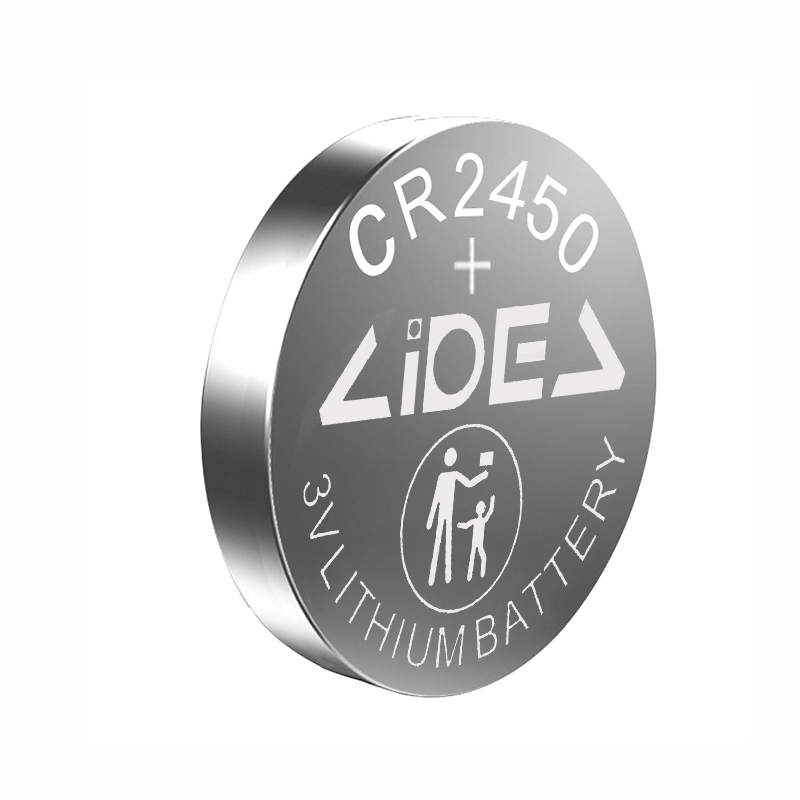

Model

CR2450

Diameter(mm)

24.5

Height(mm)

5.0

Nominal Capacity(mAh)

600

High Drain Continous(mA)

15.0

Nominal Gurrent(mA)

0.5

High Drain Pulse(mA)

20.0

Model

CR2477

Diameter(mm)

24.5

Height(mm)

7.7

Nominal Capacity(mAh)

1100

High Drain Continous(mA)

15.0

Nominal Gurrent(mA)

0.5

High Drain Pulse(mA)

20.0

Model

CR1632WT

Diameter(mm)

16.0

Height(mm)

3.2

Nominal Capacity(mAh)

120

High Drain Continous(mA)

5.0

Nominal Gurrent(mA)

0.1

High Drain Pulse(mA)

10.0

Model

CR2025WT

Diameter(mm)

20.0

Height(mm)

2.5

Nominal Capacity(mAh)

150

High Drain Continous(mA)

8.0

Nominal Gurrent(mA)

0.2

High Drain Pulse(mA)

15.0

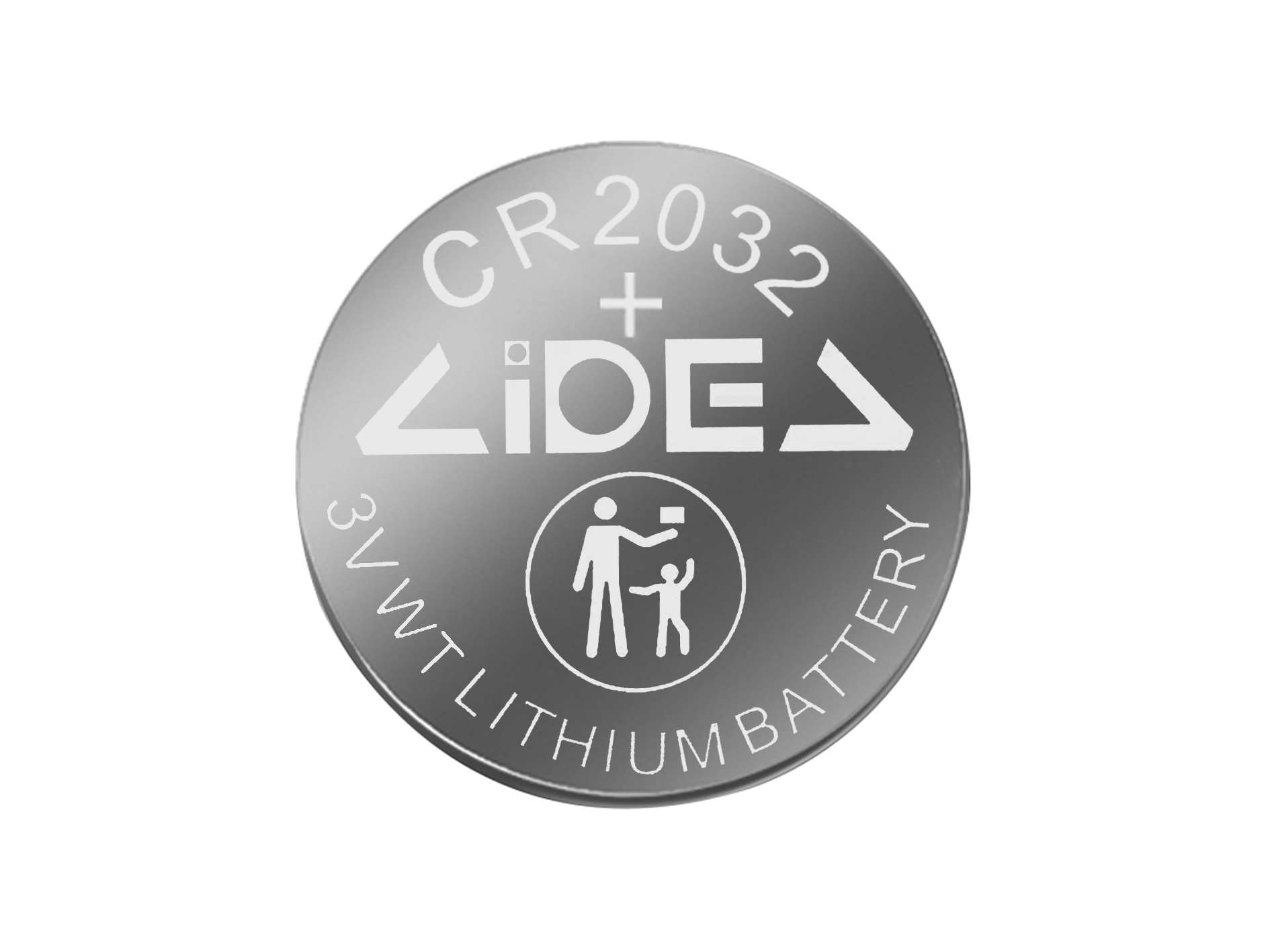

Model

CR2032WT

Diameter(mm)

20.0

Height(mm)

3.2

Nominal Capacity(mAh)

210

High Drain Continous(mA)

8.0

Nominal Gurrent(mA)

0.2

High Drain Pulse(mA)

15.0

Model

CR2050WT

Diameter(mm)

20.0

Height(mm)

5.0

Nominal Capacity(mAh)

300

High Drain Continous(mA)

8.0

Nominal Gurrent(mA)

0.2

High Drain Pulse(mA)

15.0

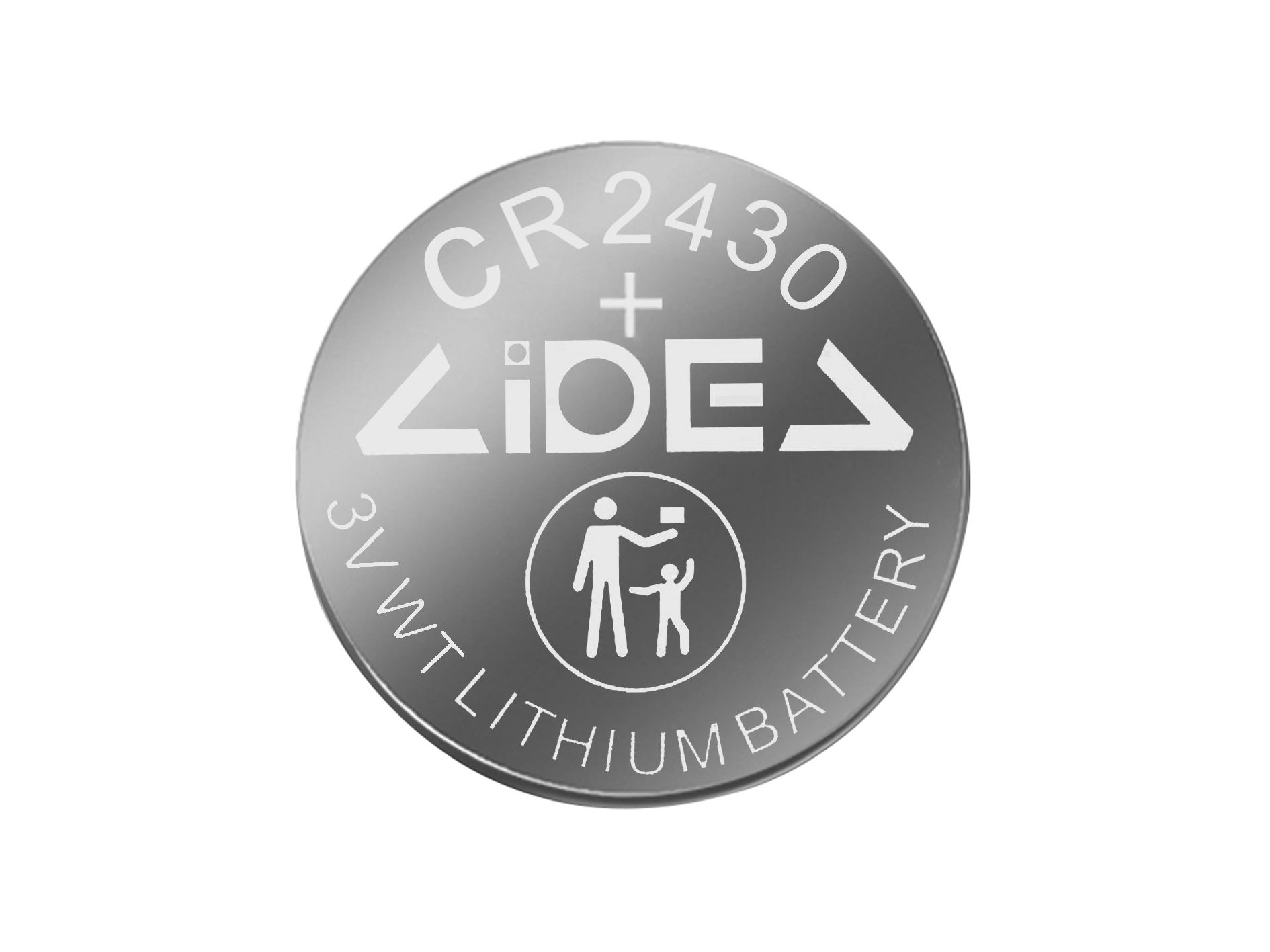

Model

CR2430WT

Diameter(mm)

24.5

Height(mm)

3.0

Nominal Capacity(mAh)

280

High Drain Continous(mA)

15.0

Nominal Gurrent(mA)

0.4

High Drain Pulse(mA)

20.0

Model

CR2450WT

Diameter(mm)

24.5

Height(mm)

5.0

Nominal Capacity(mAh)

550

High Drain Continous(mA)

15.0

Nominal Gurrent(mA)

0.4

High Drain Pulse(mA)

20.0

Model

CR2477WT

Diameter(mm)

24.5

Height(mm)

7.7

Nominal Capacity(mAh)

1000

High Drain Continous(mA)

15.0

Nominal Gurrent(mA)

0.4

High Drain Pulse(mA)

20.0

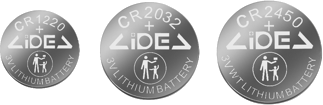

3V lithium-manganese dioxide coin cells are widely used in remote controls, computers and medical applications, as well as in IoT products and consumer goods.

WT stands for wide-temperature batteries(-40℃ to 85℃).

Disclaimer: UL and UN38.3 certifications for wide-temperature batteries have not yet been obtained;

                    please exercise caution when selecting these products.
